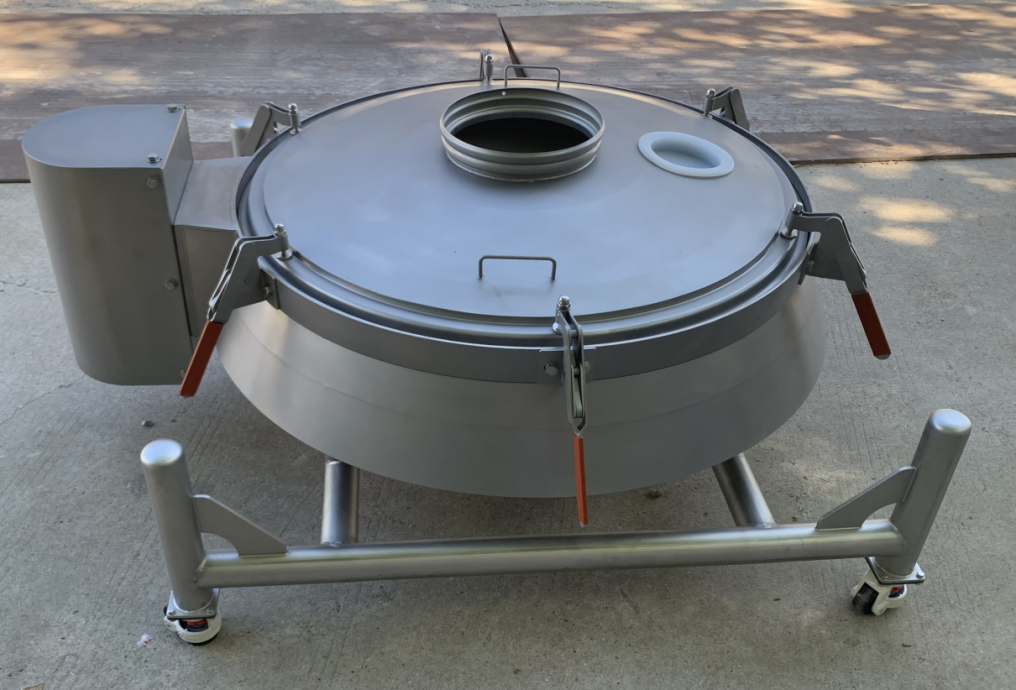

Compact Vibrating Screen

Lus piav qhia luv luv:

TP-ZS Series Separator yog lub tshuab tshuaj ntsuam xyuas nrog ib sab-mounted lub cev muaj zog uas vibrates lub vijtsam mesh. Nws nta tus qauv ncaj nraim rau kev tshuaj ntsuam xyuas kev ua tau zoo dua. Lub tshuab ua haujlwm ntsiag to heev thiab yuav tsum tsis muaj cov cuab yeej rau kev tshem tawm. Txhua qhov chaw sib cuag tau yooj yim los ntxuav, ua kom muaj kev hloov pauv sai.
Nws tuaj yeem siv rau hauv ntau daim ntawv thov thiab qhov chaw thoob plaws cov kab ntau lawm, ua rau nws tsim nyog rau ntau yam kev lag luam, suav nrog tshuaj, tshuaj, zaub mov, thiab dej haus.

Xa email rau peb

Product Detail

Khoom cim npe

SPECIFICATIONS

Qauv	TP-ZS-600	TP-ZS-800	TP-ZS-1000	TP-ZS-1200
Txoj kab uas hla (mm)	Φ600	Φ800	Φ1000 Nws
Qhov chaw zoo (m2)	0.24 ib	0.45 ib	0.67 ib
Khoom loj (mm)	<Φ10	<Φ15	<Φ20
Ntau zaus (rpm)	1420	1420	1420
Lub zog (KW)	0.08 ib	0.15	0.25
Fais fab mov	3P380V 50/60HZ
Lim qhov ntau thiab tsawg	8000 ~ 23 hli

Cov cuab yeej-dawb disassembly: Lub nrawm-tso mechanism tso cai rau yooj yim disassembly thiab ntxuav, nrog rau kev hloov tshuaj ntsuam tsuas yog 3-5 feeb.

Yooj yim ntxuav

--Quick-tso tsim kom yooj yim dismantling

--Lub cev muaj zog nrog IP66 waterproof ntsuam xyuas

--Sanitary: Lub tshuab tuaj yeem ua tau raws li cov qauv kev huv huv, suav nrog 3A, USDA, thiab FDA, los ntawm kev kho cov khoom sib cuag nrog cov khoom sib txawv.

Tsis muaj qhov screen clogging.

Kov ntau yam khoom siv: Txawm tias hnyav lossis lub teeb, ntub lossis qhuav, nplua lossis ntxhib, nws tshuaj xyuas cov khoom me me li 600 mesh ntawm cov khoom lag luam siab. Lim hmoov qhov ntau thiab tsawg ntawm 8,000 thiab 23 μm.

Ntau txoj kab uas hla muaj (23 "mus rau 39") thiab tuaj yeem hloov kho kom haum rau ib tus neeg siv.

Kev Ua Tau Zoo: Cov khoom sib cais tuaj yeem raug lees paub rau CE lossis ATEX cov qauv, nyob ntawm qhov yuav tsum tau ua.

APPLICATION

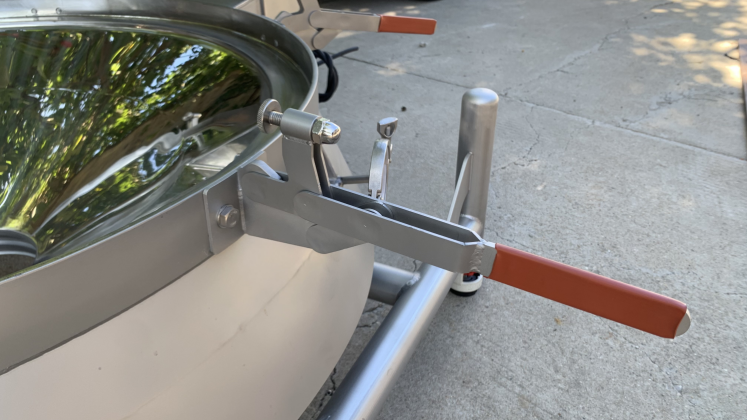

Ceev-tso clamp Tus kov nta tus qauv tsim tawm sai, ua kom tshem tawm qhov screen hauv qab ib feeb.

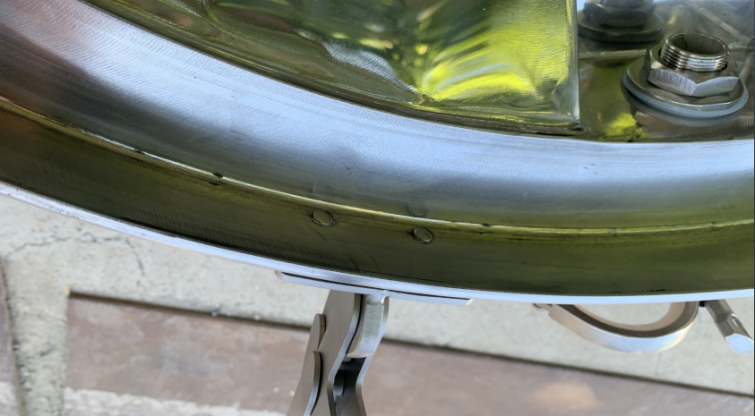

Zero Residual Design Kev sib txuas ntawm lub npov thav duab thiab lub vijtsam mesh nta tus qauv tsim, ua kom muaj kev sib txuas tsis sib haum uas huv thiab tsis muaj qhov seem.

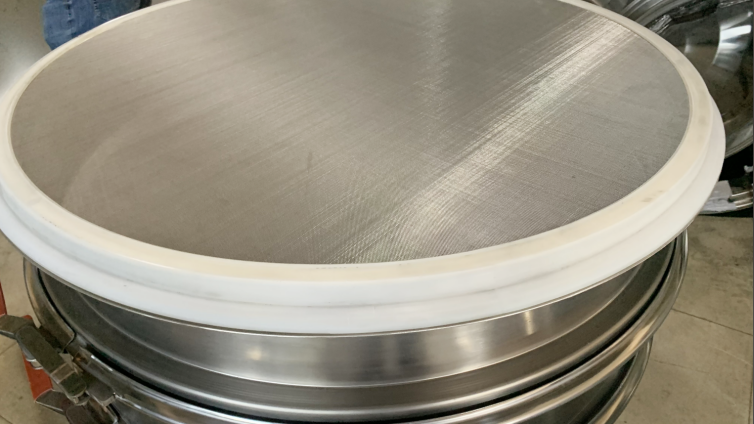

FDA pom zooSieves thiab thav ntawv yog sib koom nrog cov khoom noj-qib resin nplaum thiab yog FDA pom zoo. Tsis muaj screws siv rau ntawm lub sieve.
Lub cev muaj zog nrog IP66 Waterproof Tsim

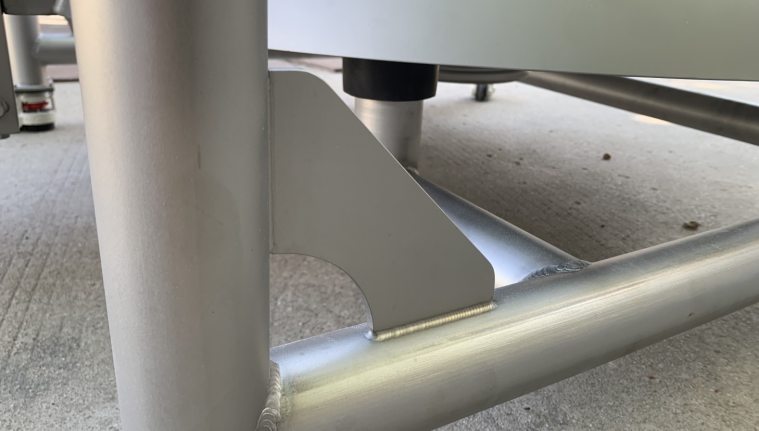

Vuam puvntawm cov khoom sib txuas: xyuas kom tsis muaj cov khoom seem hauv qhov khoob.

NTAUB NTAWV-SANITARY

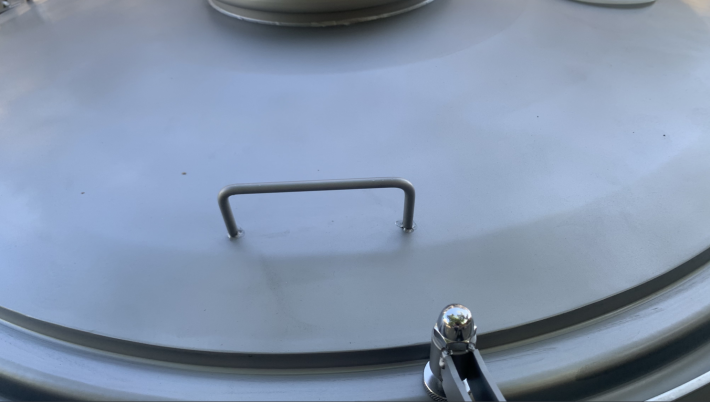

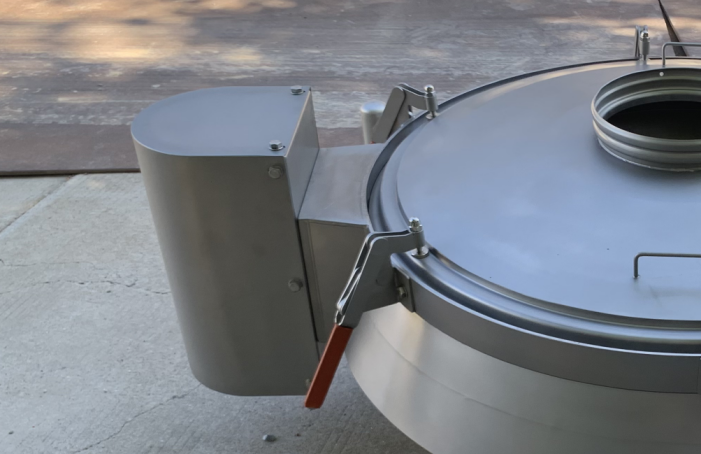

	Lub kov nkhaus ua kom yooj yim tshem tawm lub hau thiab ntxuav lub tshuab thaum twg xav tau.

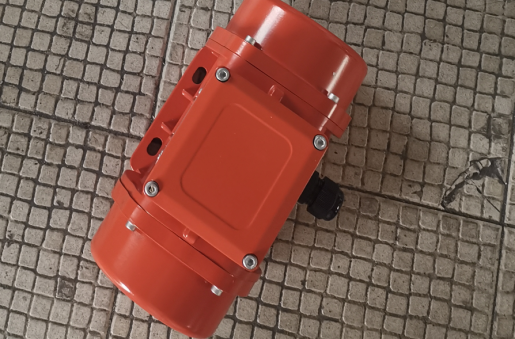

	Lub cev muaj zog yog nruab nrog lub npog tsis muaj dej thiab plua plav, tiv thaiv nws ntawm plua plav thiab tso cai rau kev ntxuav yooj yim nrog dej.

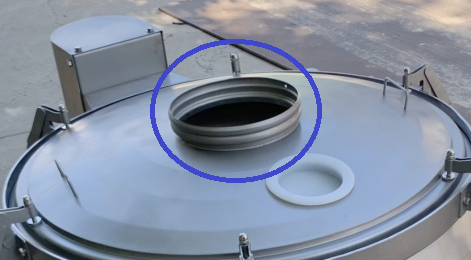

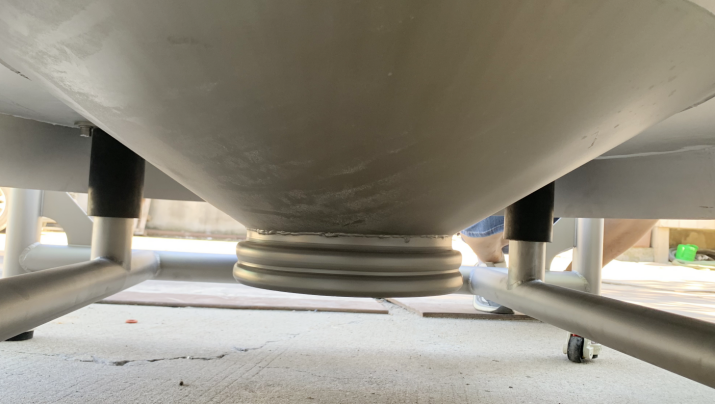

	Ceev-tso hose connector rau ceev mounting thiab dismounting yam tsis xav tau clamps.

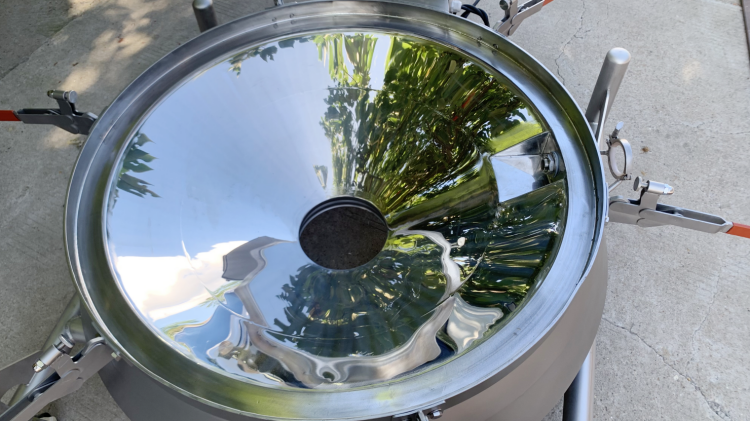

	Sandblasted nto rau lub ntsej muag zoo nkauj, tu yooj yim, thiab siv tau ntev.

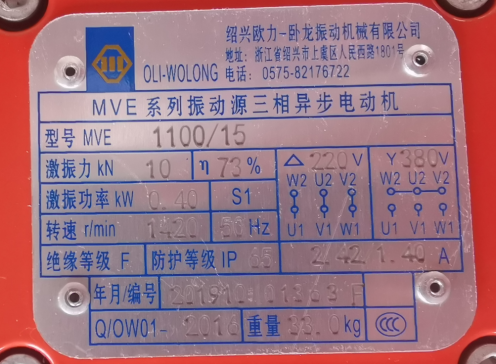

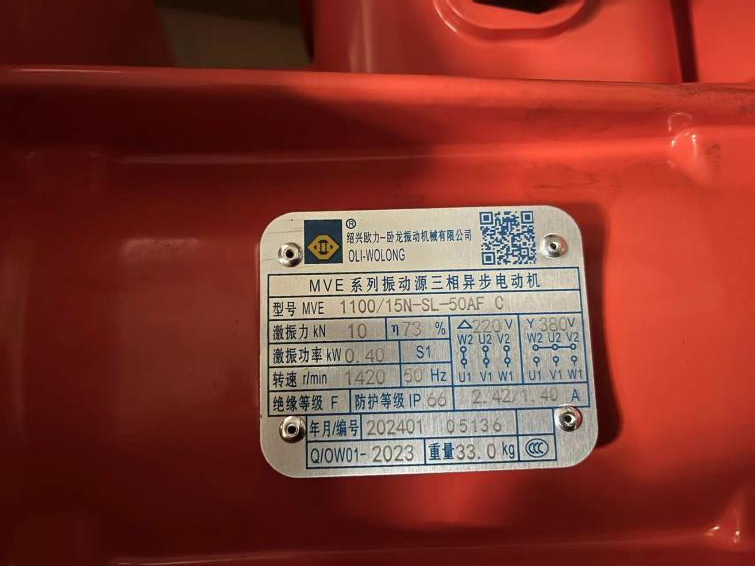

Italian-branded Oli-Wolong vibrating lub cev muaj zog - 3 xyoo warranty.Lub neej txij nkawm-dawb lub cev muaj zog, tsis tas yuav tsum tau refueling system.
